Inside CSRM's Modern Re-Rolling Mills in Bangladesh

What makes a modern steel re-rolling mill different?

A re-rolling mill takes heated steel billets and progressively reduces and shapes them into finished steel sections such as reinforcing bars. But a modern mill is not defined simply by having newer machinery.

For rebar production, the important part is process control. The billet needs controlled reheating. Rolling needs to happen through a planned sequence. Bar dimensions need to remain within the required range. And production needs to connect with quality testing rather than treating inspection as an afterthought.

At CSRM, the rolling stage is automated. Billets are first reheated in a furnace where temperature can be controlled and monitored from an external interface. They are then sent to the automatic re-rolling mill for conversion into rebar. CSRM describes automation, controlled reheating, and integrated quality control as central parts of its production setup.

This is the practical difference we focus on: not automation for its own sake, but a controlled route from billet to finished bar.

CSRM's fully automated re-rolling mills in Bangladesh

CSRM started in 1992 with a hot re-rolling mill producing 40-grade rebar. Over time, the production setup expanded into a more self-contained steel manufacturing system with billet production equipment, a dedicated power facility, and two fully automated hot re-rolling mills. The company also uses Magnetic Induction Furnaces, Continuous Casting Machines, and a physical laboratory equipped with a Universal Testing Machine.

Today, our product range includes B500CWR, B500DWR, B420DWR and B400DWR reinforcement bars. These products have different mechanical requirements, which is one reason the production line cannot be managed simply by rolling steel to a required diameter. Chemistry, temperature, rolling, and final testing all have to connect.

CSRM's steel re-rolling process at a glance

CSRM’s rebar manufacturing process involves several connected stages, from raw material selection and billet production to reheating, automated re-rolling and final quality testing. Each stage plays a role in maintaining the required rebar strength, dimensions, and quality.

The table below gives a quick overview of how our production system works:

From steel billet to finished rebar: How CSRM's production process works

CSRM rebar production moves through a controlled sequence rather than a single rolling step. Billet quality, reheating temperature, rolling accuracy, and final testing all work together to produce the required rebar grade, strength, dimensions, and consistency. Here is how our re-rolling system takes steel from prepared billet to finished reinforcement bar.

The rolling mill does not begin with scrap or molten steel. It begins with a billet, so billet quality directly affects what enters the re-rolling line. CSRM therefore manages earlier steelmaking stages within its own production system. The company lists materials such as HMS scrap, shredded scrap, PNS, pressed bundles, ferroalloys, and sponge iron among the inputs used for steel production.

This gives us control earlier in the chain rather than depending only on the rolling stage to produce the final result.

Selected raw materials are melted using induction furnace units. During melting, CSRM uses a spectrometer and chemical laboratory to check steel composition. Metallurgists monitor elements that influence the required steel grade and final behaviour of the rebar.

This point is easy to overlook when talking about re-rolling mills. Rolling changes the billet's shape and dimensions. It does not replace proper steel chemistry. If the target product has defined requirements for carbon, manganese, phosphorus, sulfur or other elements, those need to be managed before the billet reaches the rolling line.

After melting and composition control, molten steel is converted into billets through continuous casting. At CSRM, temperature and billet size are controlled during this stage, and the company also reports additional spectrum checking as part of the casting process.

Because the billet is the direct feed material. A more consistent billet gives the rolling line a more controlled starting point. CSRM reports a monthly billet production capacity of about 21,000 tonnes, although production volume itself should not be confused with product quality.

Why controlled billet reheating matters before rolling

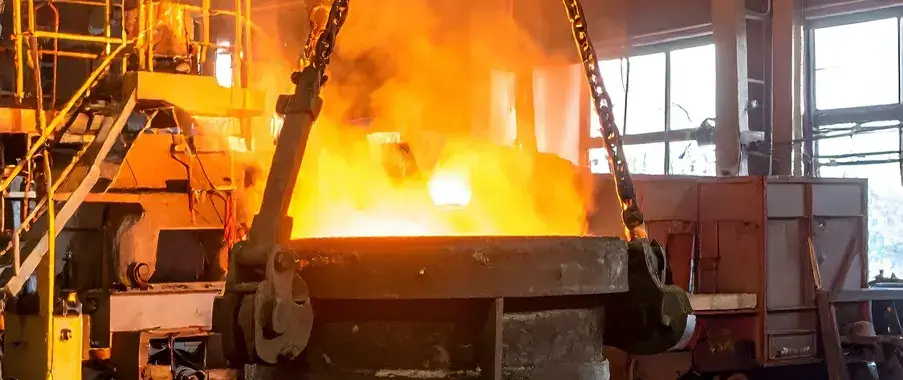

CSRM uses a modern reheating furnace with externally controlled and monitored temperature. This helps operators manage billet heating before rolling instead of relying on an uncontrolled heating cycle.

Temperature control matters for several reasons. The billet needs to become sufficiently workable for rolling, but the process must also remain consistent from one production run to another. In hot rolling, temperature directly influences how the steel behaves as it passes through successive deformation stages.

CSRM also identifies controlled reheating as part of its energy-efficiency approach, because improved temperature management can reduce unnecessary energy use during production. The company does not publish a quantified energy-saving percentage, so it is more accurate to describe this as a process-efficiency measure rather than make a specific environmental claim.

How CSRM's automatic re-rolling mill produces rebar

After reheating, billets enter the automated hot re-rolling mill. The steel is progressively worked into the required rebar section rather than being reduced to final size in one step. CSRM’s own process description emphasizes three areas within the automated mill: precision, production efficiency, and integration with quality control.

Automation is useful here because rebar production is repetitive but dimension-sensitive. A production line needs to maintain control as the material travels from billet input toward the finished bar.

For a buyer, contractor or engineer, the important outcome is not simply that a machine is automated. What matters is whether the finished product reaches its specifications:

• Bar diameter
• Unit weight
• Yield strength
• Tensile strength
• Elongation
• Bendability
• Grade-specific mechanical properties

How CSRM maintains rebar quality during production

A modern rolling mill cannot make every bar identical in an absolute sense. Standards allow defined tolerances. The goal is controlled and repeatable production within the applicable requirements. At CSRM, several parts of the process work together.

• Controlled billet input: Because billet production is handled within the same manufacturing chain, chemistry and billet preparation can be managed before re-rolling.
• Monitored reheating: The billet enters the rolling line after controlled heating rather than an unmonitored furnace stage.
• Automated re-rolling: Automated hot-rolling equipment handles the billet-to-rebar conversion.
• Product testing: Finished samples are checked in the laboratory rather than relying only on visual inspection.

Rebar quality testing at CSRM's laboratory

The production process does not end when the bar leaves the mill. CSRM operates a physical laboratory using a Universal Testing Machine (UTM). Its quality testing information also covers tensile testing, bend testing, and re-bend testing.

The company’s certification section currently lists BUET laboratory test records for different CSRM grades and bar sizes, including B500CWR, B500DWR and B420DWR samples. This is better understood as testing of identified samples, not as a claim that BUET separately tests every individual bar in the market.

Note: For project use, engineers should still match the relevant grade, diameter, batch documentation, and applicable test information.

Steel rebar standards and dimensional control in Bangladesh

Modern re-rolling mills help maintain accurate bar dimensions, consistent weight, and controlled production quality. In Bangladesh, BDS ISO 6935-2:2021 is the updated standard for ribbed steel bars used in reinforced concrete.

CSRM publishes technical specifications for its reinforcement bars, including chemical composition, mechanical properties, bar dimensions, and permissible weight deviations. Its B500CWR product information covers bar sizes from 8 mm to 32 mm, helping engineers and buyers review the relevant product details.

At CSRM, we focus on more than production speed. Dimensional accuracy, mechanical properties, and laboratory testing are important parts of our rebar manufacturing process.

CSRM's re-rolling mills and production facilities at a glance

Bangladesh’s construction market now includes private homes, high-rise developments, industrial facilities, and major infrastructure. Our production system is capable of handling several rebar grades through a more controlled manufacturing route. CSRM currently produces B400DWR, B420DWR, B500CWR and B500DWR.

For engineers, contractors, developers, and buyers comparing steel manufacturers in Bangladesh, these are the main points behind our current re-rolling setup:

Choose CSRM rebar for your construction project

Chakda Steel & Re-Rolling Mills (Pvt.) Ltd. has been involved in steel manufacturing since 1992. Our two fully automated hot re-rolling mills, own billet production facilities, controlled reheating process, and laboratory testing system work together to produce reinforcement bars with the required strength, dimensions, and mechanical properties.

We manufacture B500CWR, B500DWR, B420DWR, and B400DWR rebar for different construction requirements in Bangladesh. Whether you're sourcing steel for a residential building, commercial development or large infrastructure project, CSRM offers multiple rebar grades backed by an established manufacturing process.

FAQs about steel re-rolling mills in Bangladesh

Here are some common questions about CSRM’s automated re-rolling process, billet production, rebar grades, and quality testing, with straightforward answers.
